Innovative Approach to Electric Motorcycles
Traditionally, electric motorcycles have been purpose-built designs, often featuring the battery case as a central structural component. However, CFMoto is taking a different approach by integrating electric power into an existing ICE-powered model, potentially offering cost savings and component-sharing benefits.
Shared Chassis Design

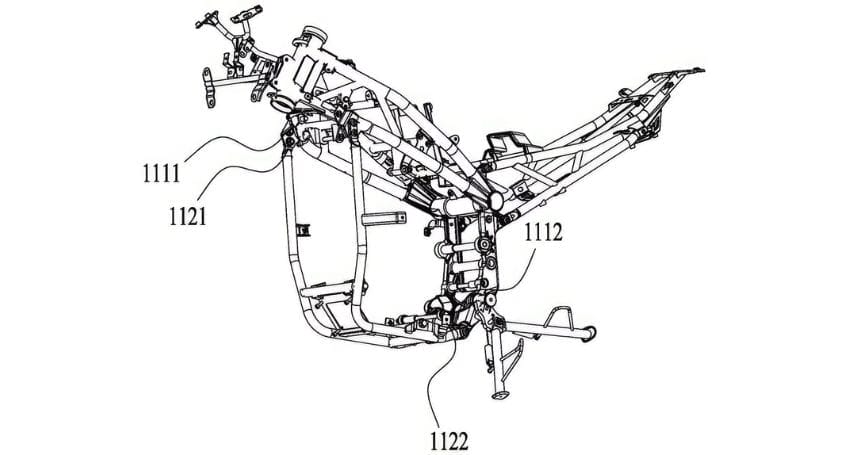

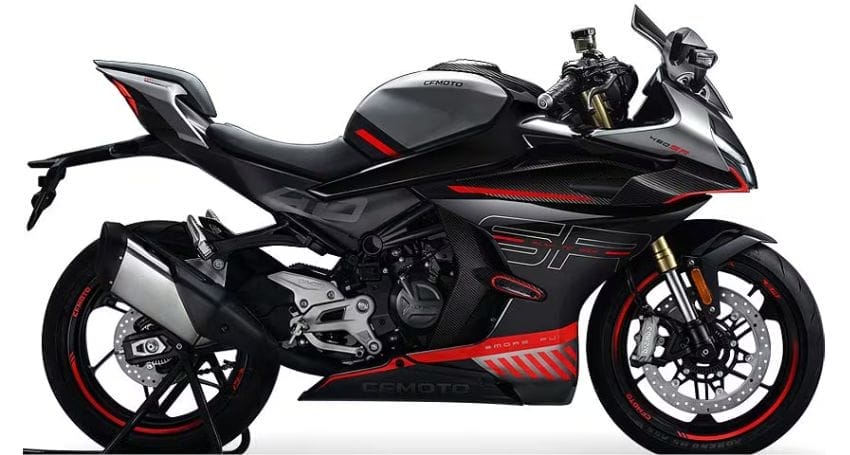

The new electric sportbike from CFMoto utilizes a tubular-steel trellis frame borrowed from its 450SR and 450NK models. This innovative design retains the visual and functional aspects of the original chassis while incorporating a battery pack and electric motor, allowing for production alongside ICE versions on the same assembly line.
Economies of Scale and Transitional Design
Similar to practices in the automotive industry, CFMoto’s strategy leverages economies of scale by adapting existing ICE structures for electric powertrains. This approach facilitates the production of more affordable EVs during a transitional period where future model directions remain uncertain.

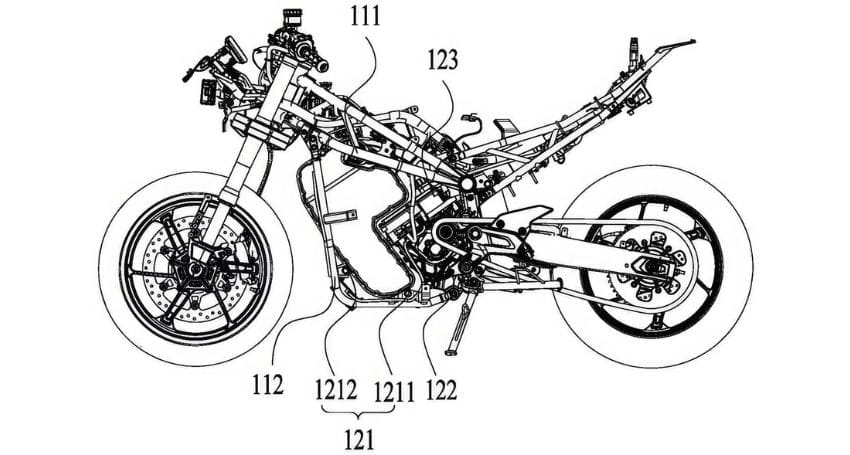

Structural Integrity and Battery Housing
CFMoto’s design incorporates a metal battery case that not only protects the battery but also contributes to the chassis’s structural integrity. This ensures that the electric version maintains the same level of robustness and durability as its ICE counterpart.
Performance and Component Consistency

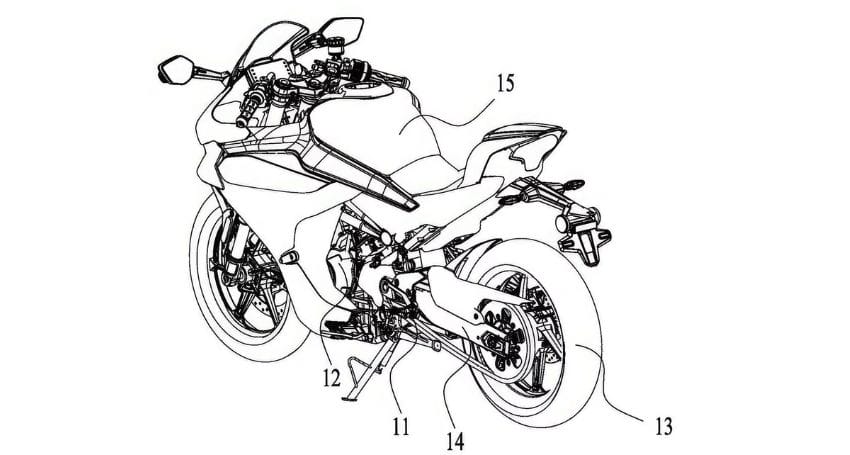

While the electric version based on the 450SR chassis may offer performance comparable to a 125cc bike with limited range, it retains identical wheels, brakes, suspension, and bodywork. The absence of a gear shifter or clutch lever simplifies the design, with a single-speed configuration and a reduction gearbox for efficient power delivery.
Practical Considerations and Charging Infrastructure
With no need for a fuel tank, the electric sportbike utilizes the space for storage, while the charging socket replaces the traditional fuel filler location. This practical adaptation reflects the shift towards electric mobility and the evolving infrastructure to support it.
